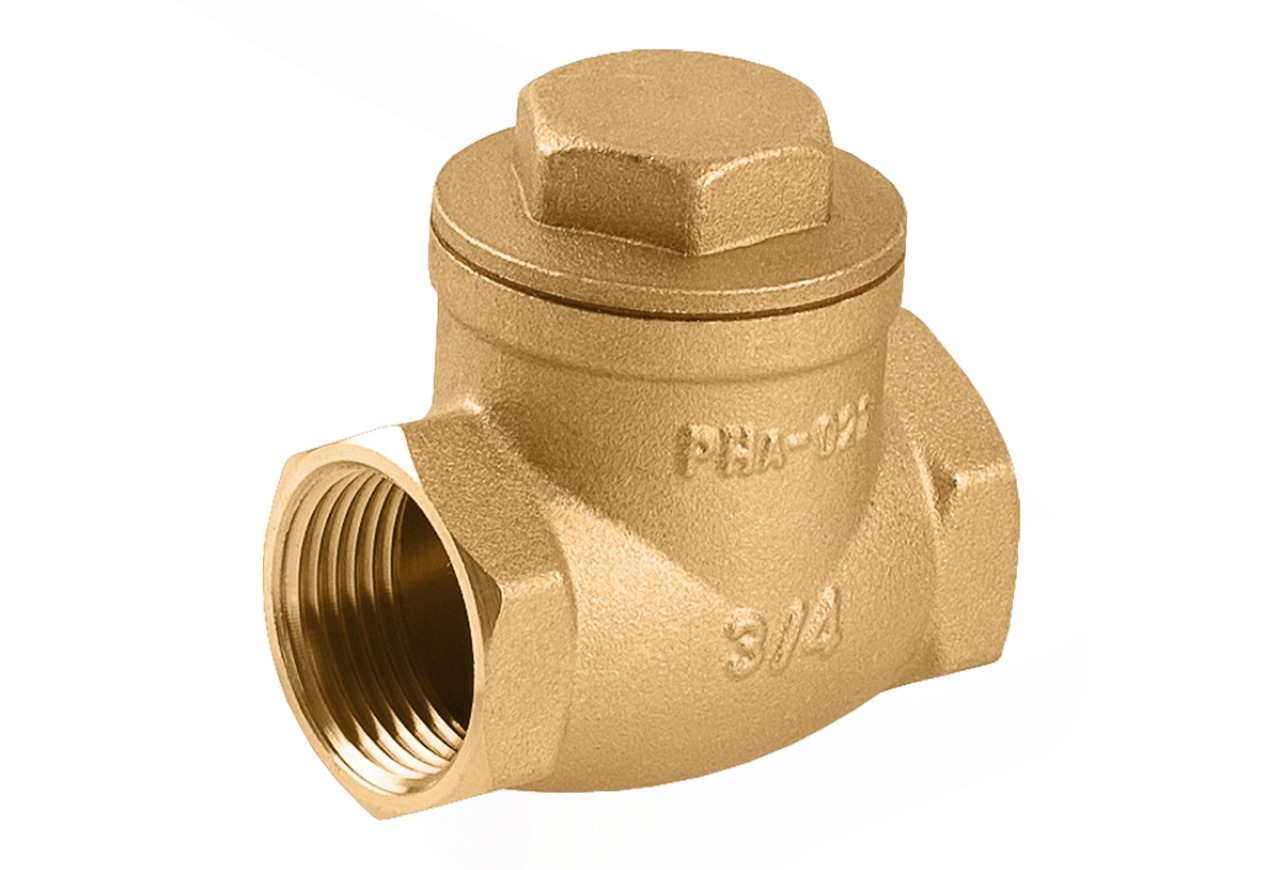

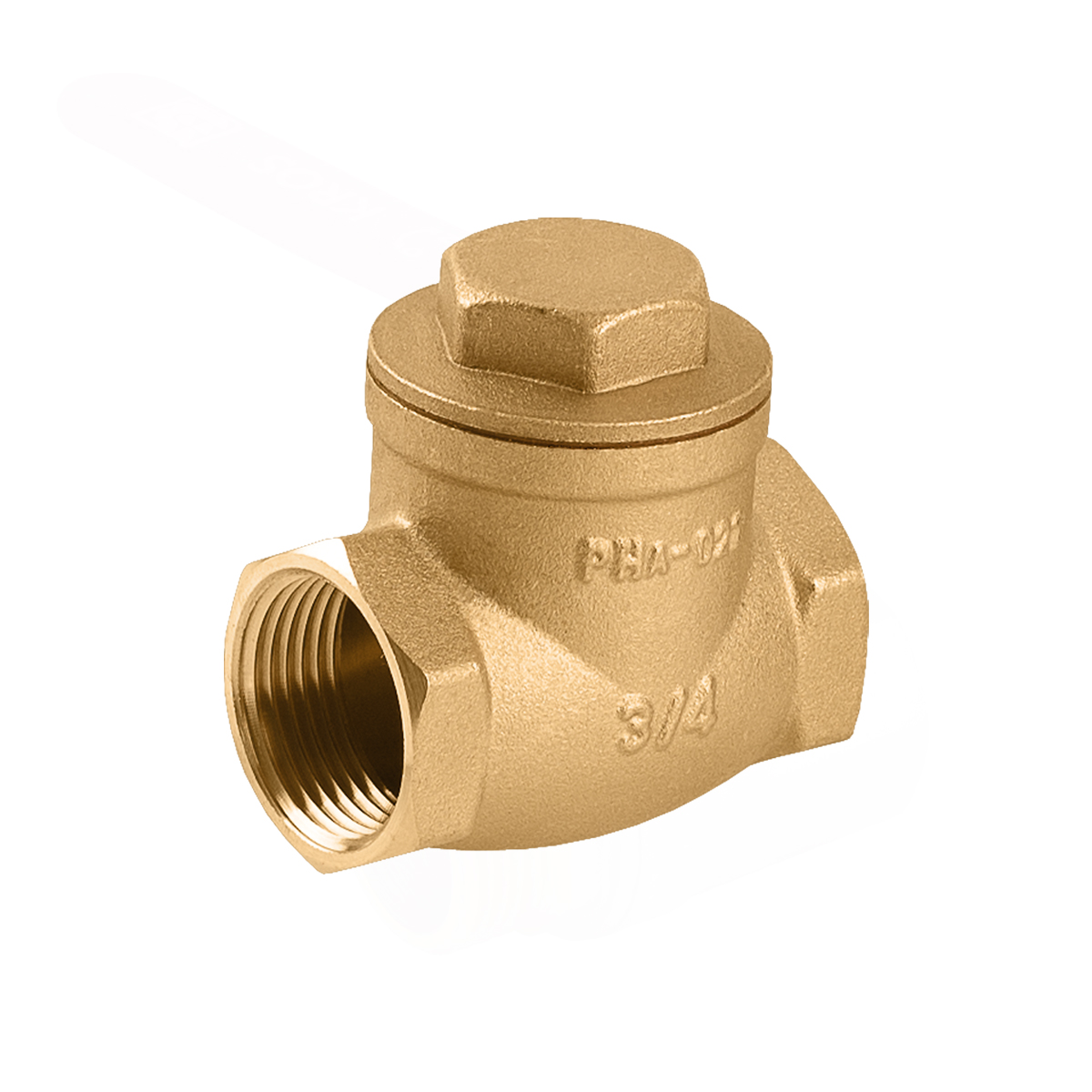

Atbulinis vožtuvas gravitacinis žalvarinis
DN 15, 20, 25
| Tmax | Tmin | Pmax | Sriegiai pagal |
| +120°C | -30°C | 16 bar | ISO 228 |
DN 32, 40, 50, 65, 80
| Tmax | Tmin | Pmax | Sriegiai pagal |
| +120°C | -30°C | 10 bar | ISO 228 |
Korpusas, varžtas, liežuvėlis - CW617N žalvaris
| Dydis | DN | PN | Q (m3/h | Kv (m3/h) | D | L | l | l1 | H | S |
| ½” | 15 | 16 | 1,87 | 5,91 | 14,0 | 49,5 | 11,0 | 10,0 | 31,0 | 24,0 |
| ¾” | 20 | 16 | 3,06 | 9,68 | 17,0 | 57,5 | 12,0 | 11,0 | 35,0 | 30,5 |
| 1" | 25 | 16 | 5,22 | 16,51 | 21,5 | 61,5 | 14,0 | 11,5 | 39,0 | 37,5 |
| 1¼" | 32 | 10 | 8,89 | 28,11 | 27,0 | 77,0 | 17,5 | 15,0 | 49,0 | 47,0 |
| 1½" | 40 | 10 | 11,70 | 37,00 | 35,0 | 83,0 | 18,0 | 16,0 | 56,0 | 53,5 |
| 2" | 50 | 10 | 17,71 | 56,00 | 47,0 | 90,0 | 19,0 | 16,0 | 59,0 | 65,0 |
| 2½” | 65 | 10 | 57,0 | 120,0 | 21,0 | 19,0 | 77,0 | 82,0 | ||
| 3" | 80 | 10 | 68,0 | 134,0 | 23,0 | 22,0 | 84,0 | 96,0 |
*mm
