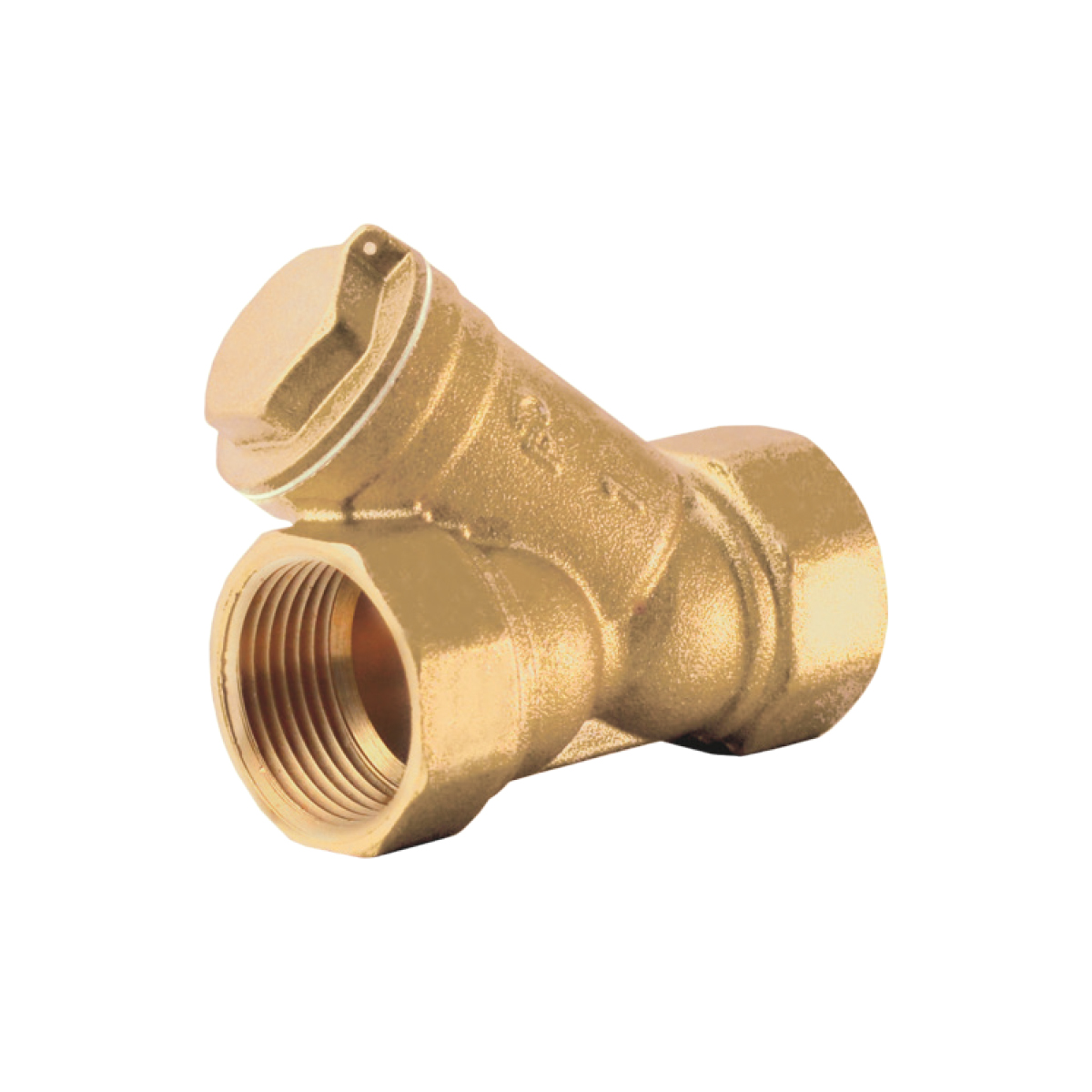

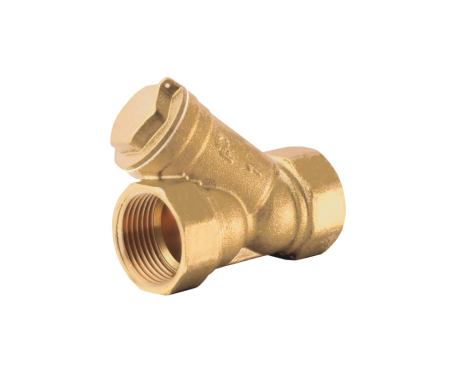

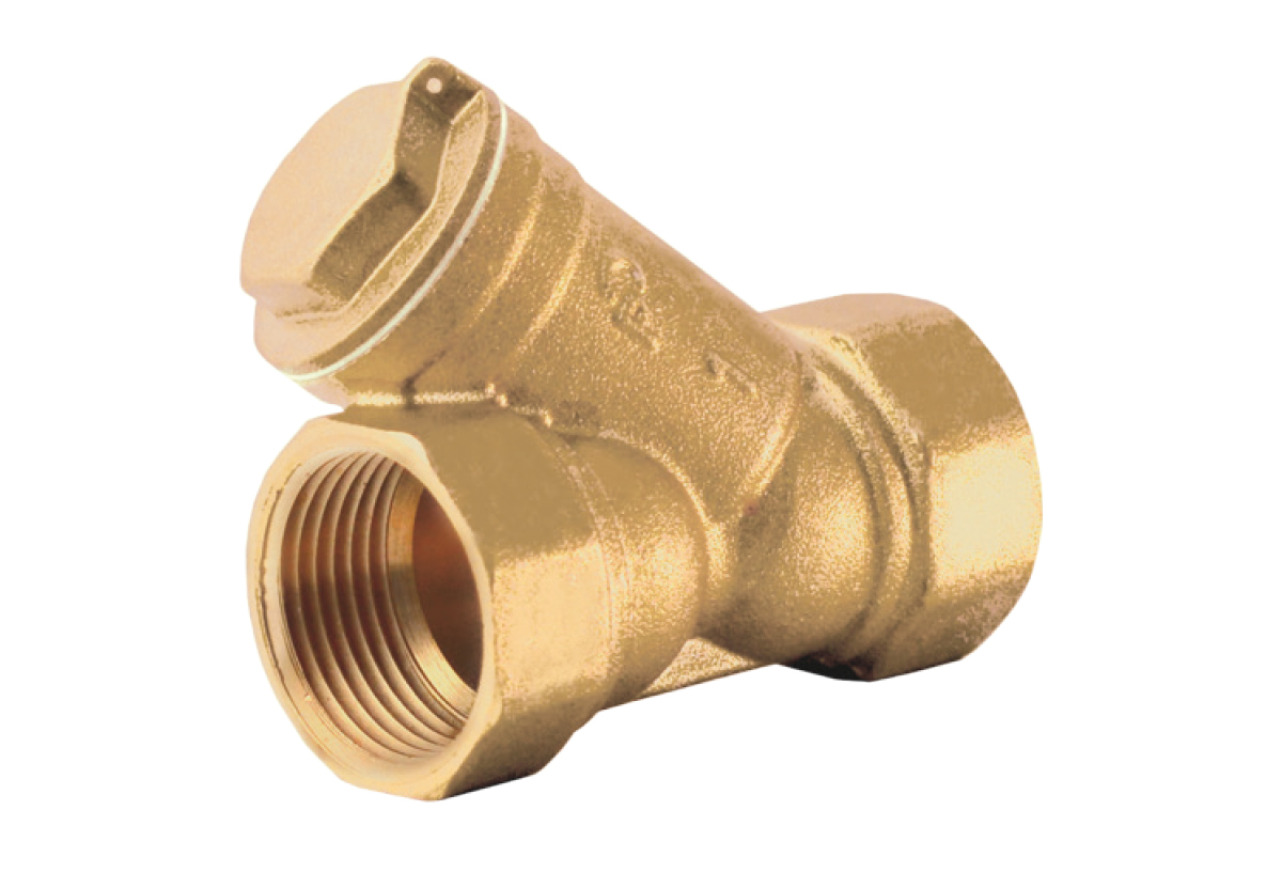

Filtras žalvarinis
DN 15, 20, 25, 32, 40, 50
| Tmax | Tmin | Pmax | Sriegiai pagal |
| +150°C | -30°C | 25 bar | ISO 228 |
DN 65, 80
| Tmax | Tmin | Pmax | Sriegiai pagal |
| +120°C | -30°C | 20 bar | ISO 228 |
Korpusas - CW617N žalvaris
Sietelis - nerūdijantis plienas
Tarpinė - PTFE
| Dydis | DN | PN | Q (m3/h | Kv (m3/h) | L | l | H | S | K1 | J2 |
| ½” | 15 | 25 | 0,92 | 2,91 | 57,0 | 11,5 | 31,3 | 24,0 | 0,5 | 80 |
| ¾” | 20 | 25 | 1,91 | 6,07 | 68,0 | 13,0 | 37,0 | 30,0 | 0,5 | 80 |
| 1" | 25 | 25 | 2,45 | 7,75 | 75,0 | 16,0 | 42,5 | 37,0 | 0,5 | 80 |
| 1¼" | 32 | 25 | 4,75 | 15,02 | 93,0 | 17,0 | 56,2 | 48,5 | 0,5 | 80 |
| 1½" | 40 | 25 | 8,50 | 26,88 | 107,0 | 19,0 | 60,0 | 54,0 | 0,5 | 80 |
| 2" | 50 | 25 | 10,48 | 34,28 | 126,0 | 22,0 | 72,5 | 67,0 | 0,5 | 80 |
| 2½” | 65 | 20 | 144,0 | 24,0 | 84,5 | 82,0 | 0,9 | 36 | ||
| 3" | 80 | 20 | 158,0 | 26,0 | 101,0 | 95,0 | 0,9 | 36 |
*mm
