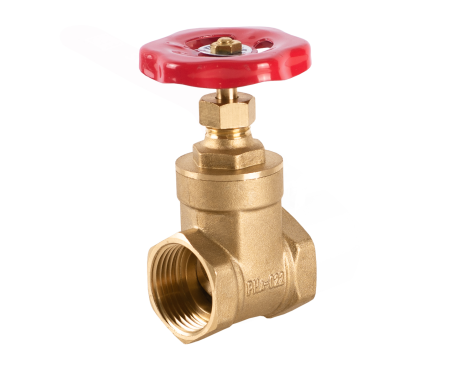

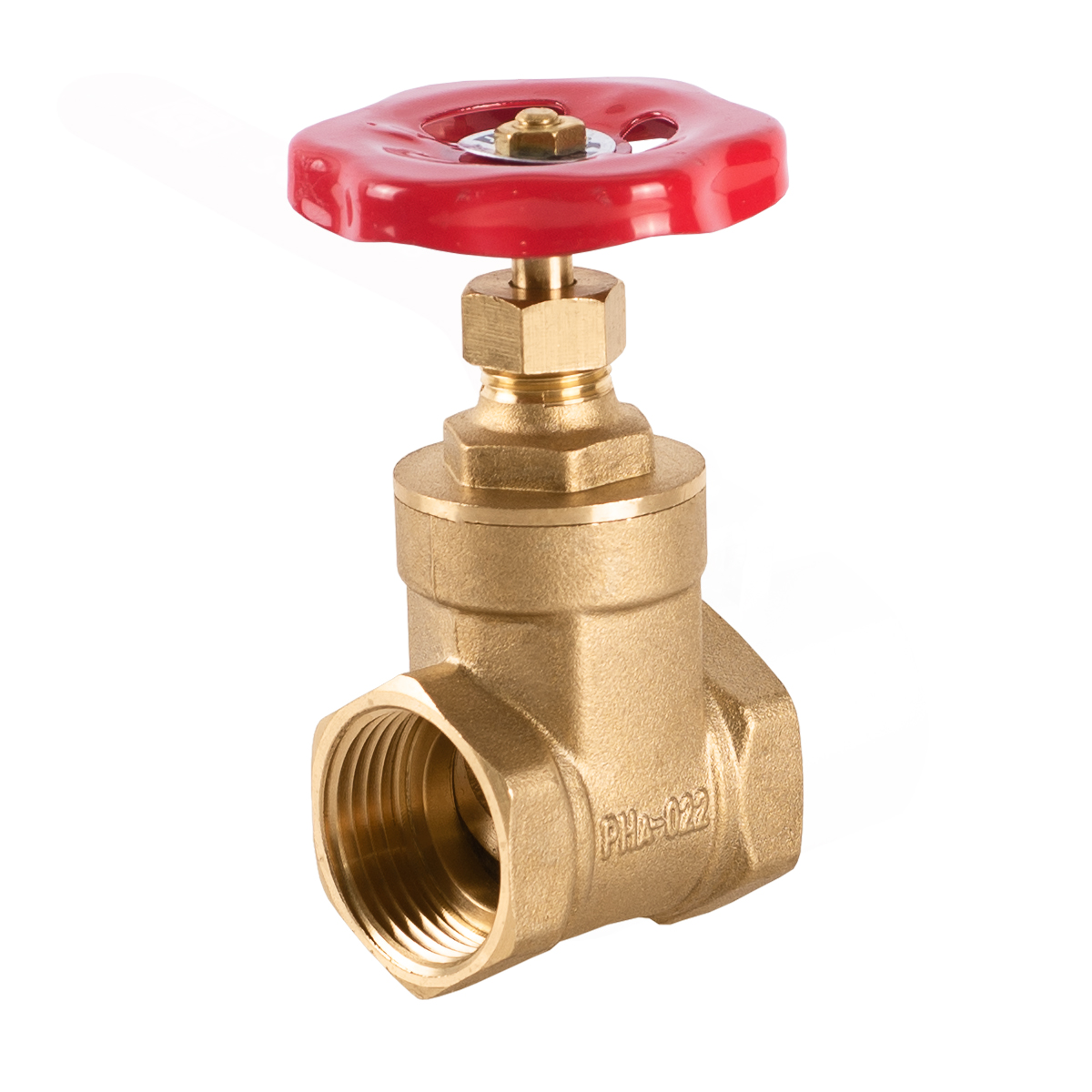

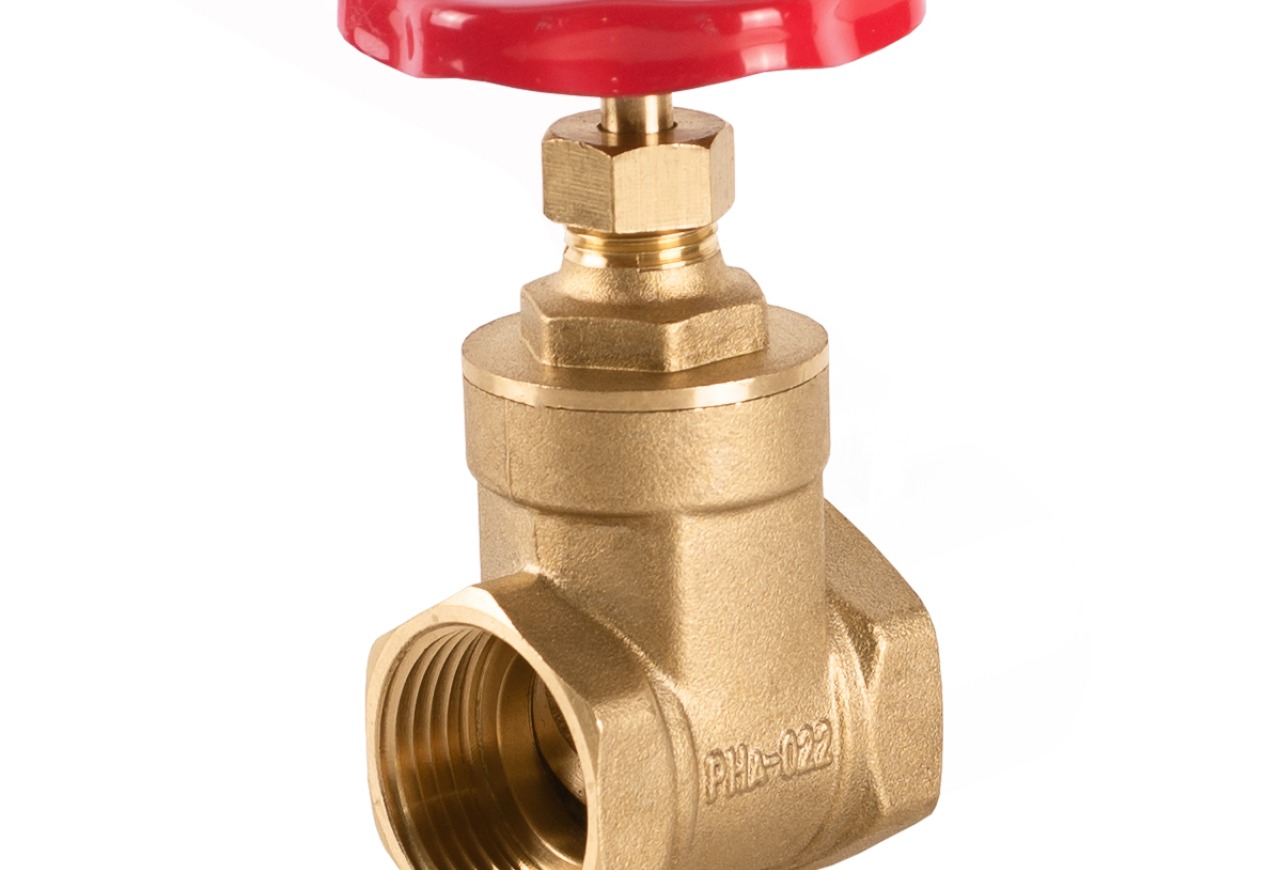

Žalavarinė sklendė
| Tmax | Tmin | Pmax | Sriegiai pagal |
| +100°C | +1°C | 16 bar | ISO 228 |
DN100 (4")
| Tmax | Tmin | Pmax | Sriegiai pagal |
| +80°C | 0°C | 16 bar | ISO 228 |
KORPUSAS, DANGTELIS, KAIŠTIS, PLEIŠTAS: žalvaris CW617N
VERŽLĖ, FIKSAVIMO VERŽLĖS PLOKŠTELĖ, ĮVORĖ, VERŽLĖ: žalvaris
DANGTELIO TARPIKLIS, ĮDĖKLAS: PTFE (teflonas)
RANKENĖLĖ: aliuminio lydinys su raudona dažų danga
| Dydis | DN | PN | Q (m3/h | Kv (m3/h) | D | L | l | H | S |
| ½” | 15 | 16 | 2,53 | 8,00 | 15 | 38,0 | 10,0 | 68,0 | 26,0 |
| ¾” | 20 | 16 | 4,84 | 15,30 | 19 | 43,0 | 12,0 | 75,0 | 31,0 |
| 1" | 25 | 16 | 8,10 | 25,61 | 24 | 47,5 | 13,0 | 85,0 | 38,0 |
| 1¼" | 32 | 16 | 14,71 | 46,52 | 32 | 52,0 | 14,0 | 98,0 | 47,0 |
| 1½" | 40 | 16 | 22,47 | 71,06 | 39 | 57,0 | 15,0 | 115,0 | 53,0 |
| 2" | 50 | 16 | 26,94 | 85,19 | 50 | 65,0 | 17,0 | 147,0 | 65,0 |
| 2½” | 65 | 16 | 60 | 66,0 | 17,0 | 159,0 | 84,5 | ||
| 3" | 80 | 16 | 68 | 84,0 | 23,0 | 185,0 | 100,0 | ||
| 4" | 100 | 16 | 93 | 16 | 230 | 127,0 |
*mm
