Perėjimas privirinamas
Gamintojas TASTA ARMATURA SA (Lenkija)
Plienas P235GH
Standartai EN10253, EN10216
Didesni diametrai pagal užsakymą.
Ekscentriniai perėjimai pagal užsakymą.

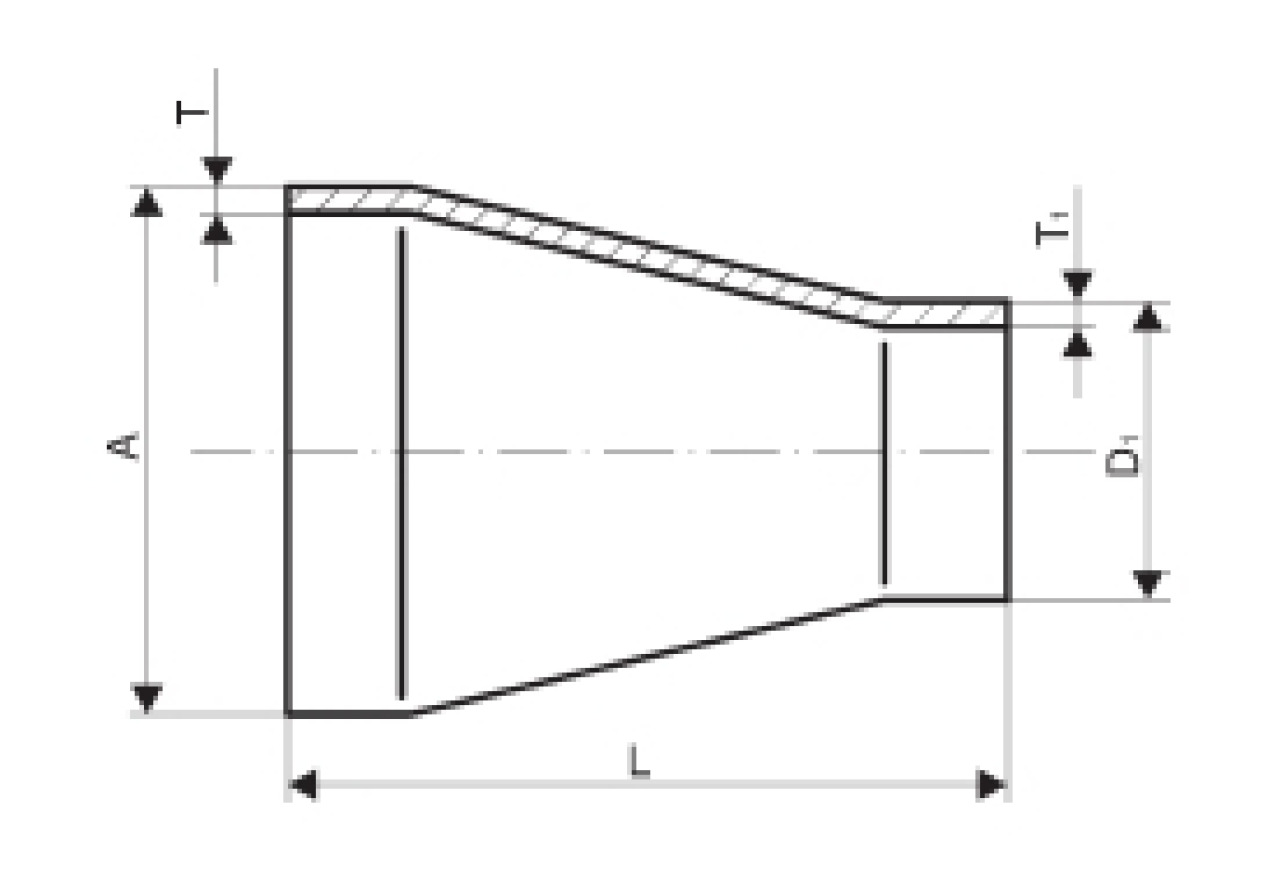

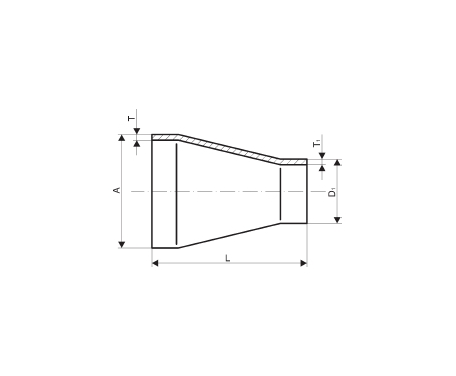

| DN | DxD1 | L |
| 20x15 | 26,9x21,3 | 38 |
| 25x15 | 33,7x21,3 | 51 |
| 25x20 | 33,7x26,9 | 51 |
| 32x15 | 42,4x21,3 | 51 |
| 32x20 | 42,4x26,9 | 51 |
| 32x25 | 42,4x33,7 | 51 |
| 40x21 | 48,3x21,3 | 64 |
| 40x20 | 48,3x26,9 | 64 |
| 40x25 | 48,3x33,7 | 64 |
| 40x32 | 48,3x42,4 | 64 |
| 50x20 | 57,0x26,9 | 76 |
| 50x25 | 57,0x33,7 | 76 |
| 50x32 | 57,0x42,4 | 76 |
| 50x40 | 57,0x48,3 | 76 |
| 50x20 | 60,3x26,9 | 76 |
| 50x25 | 60,3x33,7 | 76 |
| 50x32 | 60,3x42,4 | 76 |
| 50x40 | 60,3x48,3 | 76 |
| 65x25 | 76,1x33,7 | 89 |
| 65x32 | 76,1x42,4 | 89 |
| 65x40 | 76,1x48,3 | 89 |
| 65x50 | 76,1x57,0 | 89 |
| 65x50 | 76,1x60,3 | 89 |
| 80x25 | 88,9x33,7 | 89 |
| 80x32 | 88,9x42,4 | 89 |
| 80x40 | 88,9x48,3 | 89 |
| 80x50 | 88,9x57,0 | 89 |
| 80x50 | 88,9x60,3 | 89 |
| 80x65 | 88,9x76,1 | 89 |
| 100x40 | 108,0x48,3 | 102 |
| 100x50 | 108,0x57,0 | 102 |
| 100x50 | 108,0x60,3 | 102 |
| 100x65 | 108,0x76,1 | 102 |
| 100x80 | 108,0x88,9 | 102 |
| 100x50 | 114,3x60,3 | 102 |
| 100x65 | 114,3x76,1 | 102 |
| 100x80 | 114,3x88,9 | 102 |
| 100x100 | 114,3x108,0 | 102 |
| 125x65 | 133,0x76,1 | 127 |
| 125x80 | 133,0x88,9 | 127 |
| 125x100 | 133,0x108,0 | 127 |
| 125x100 | 133,0x114,3 | 127 |
| 125x65 | 139,7x761 | 127 |
| 125x80 | 139,7x88,9 | 127 |
| 125x100 | 139,7x108,0 | 127 |
| 125x100 | 139,7x114,3 | 127 |
| 125x125 | 133,0x139,7 | 127 |
| 150x65 | 159,0x76,1 | 140 |
| 150x80 | 159,0x88,9 | 140 |
| 150x100 | 159,0x108,0 | 140 |
| 150x100 | 159,0x114,3 | 140 |
| 150x125 | 159,0x133,0 | 140 |
| 150x125 | 159,0x139,7 | 140 |
| 150x65 | 168,3x76,1 | 140 |
| 150x80 | 168,3x88,9 | 140 |
| 150x100 | 168,3x108,0 | 140 |
| 150x100 | 168,3x114,3 | 140 |
| 150x125 | 168,3x133,0 | 140 |
| 150x125 | 168,3x139,7 | 140 |
| 150x150 | 168,3x159,0 | 140 |
| 200x100 | 219,1x108,0 | 152 |
| 200x100 | 219,1x114,3 | 152 |
| 200x125 | 219,1x133,0 | 152 |
| 200x125 | 219,1x139,7 | 152 |
| 200x150 | 219,1x159,0 | 152 |
| 200x150 | 219,1x168,3 | 152 |
| 250x100 | 273,0x114,3 | 178 |
| 250x125 | 273,0x139,7 | 178 |
| 250x150 | 273,0x159,0 | 178 |
| 250x200 | 273,0x219,1 | 178 |
| 300x200 | 323,9x219,1 | 203 |
| 300x250 | 323,9x273,0 | 203 |
| 350x200 | 355,6x219,1 | 330 |
| 350x250 | 355,6x273,0 | 330 |
| 350x300 | 355,6x323,9 | 330 |
| 400x300 | 406,4x323,9 | 356 |
| 400x350 | 406,4x355,6 | 356 |
